1550nm Pulsed fiber laser light source module Laser radar diode lidar module

1550nm Pulsed fiber laser light source module Laser radar diode lidar module

This product is a human-eye-safe 1550nm pulsed fiber laser source developed by SAN-U Optronics. It features high peak power, high electro-optic efficiency, low ASE and nonlinear effect noise, and a wide operating temperature range. The product is suitable for use in lidar systems and various sensors.

Wavelength :
1550nm

Inquiry now

Product Details

Features:

Specifications:

bsolute Maximum Ratings

參數	單位	最小值	典型值	最大值	說明
工作方式		脈沖
中心波長	nm	1547	1550	1553	可定制CWL 1535±3nm
脈寬(FWHM)	ns	1		10	可調
重復頻率	MHz	0.1	0.5	2	可調
平均功率	W	0.95	1	2	@3ns, 500kHz, 25C
峰值功率	kW		1.5①	2.0②
偏振態(tài)	NA	隨機
觸發(fā)模式	NA	外觸發(fā)
脈沖出光延遲抖動	ps		80	100
電功耗	W			13	輸出1W
工作電壓	V	9	12	13
工作溫度(@殼體)	℃	-40		85
存儲溫度	℃	-40		105
封裝尺寸	mm	50x70x19
重量	g			100
光輸出方式		FC/APC頭或光纖準直輸出
輸出光纖長度	m	定制			900T套管
電接口型號		MOLEX 505567-1281

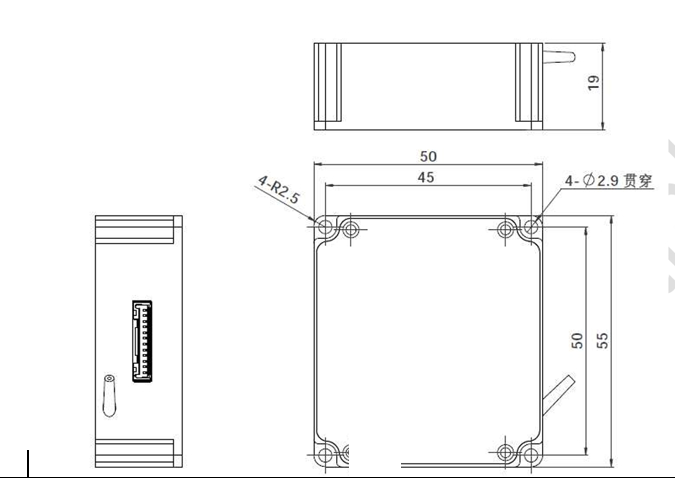

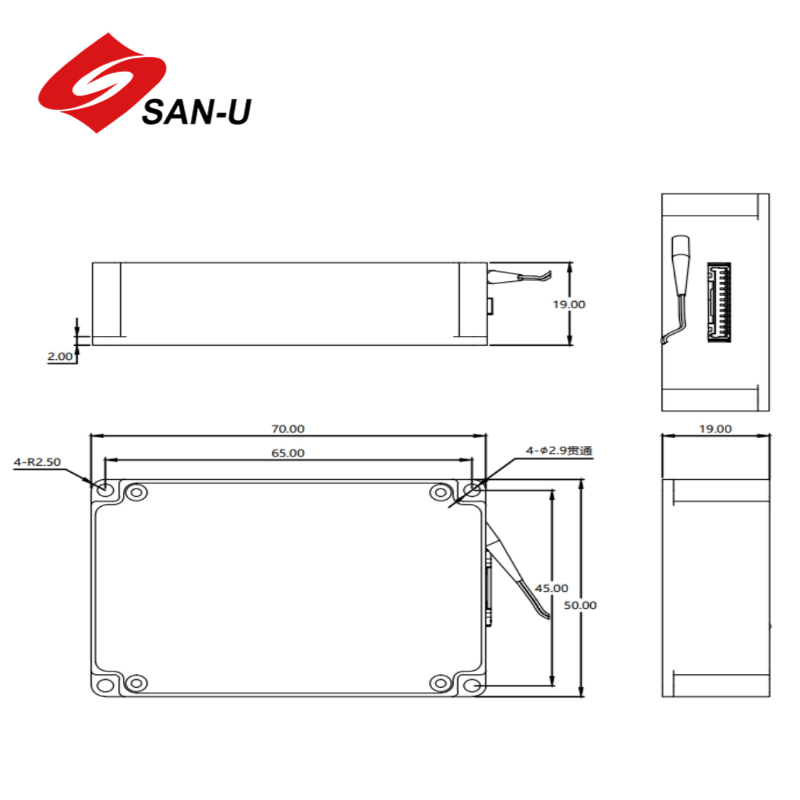

Mechanical Dimensions:

Xiamen San-U Optronics Co., Ltd was established in 2001 year, which is a new high-tech enterprise

specializing in R&D and massproduction in highspeed semi-conductor Laser / detector , optical

components and module.San-U products are widely used incloud computing, HTTP,sensor detector

territory ,optical telecommunication,and so on.

San-U Company established “Xiamen University San-U Optronics Technology R&D Center” and

“Xiamen Optical communicationcomponents test key lab” Successively based on Industry-University

Cooperation， San-U R&D team burden more t han 20projects of National,Province and city class

innovation fund and technology aid, which possesses 4 items innovation patents andmore than 20

realistic new type patents. The results and findings of R&D by San-U are all turned into mass

production and becomethe market hot points products. San-U is awarded as ‘Xiamen Leading

enterprise as technology small giants’ , ‘Fujian Innovation enterprise’. Nationa l Innovation Fund

Project - - 10G Semi-conductor Laser and components has also been verified. San-U company

has priority to enter Chinese domestic market by replace import products. San-U has already

established Automatic Chip Auto assembly line, components auto coupling production line and

has already access mass production. San-U production line has already realize the information

and intelligence, which is atleading position within domestic. Optical components automatic mass

production technology development project has already gained the National Innovation Fund’s

major projects support. In optical communication industry transformation and upgrading to

automation scale mass production aspect has demonstrative effect.
